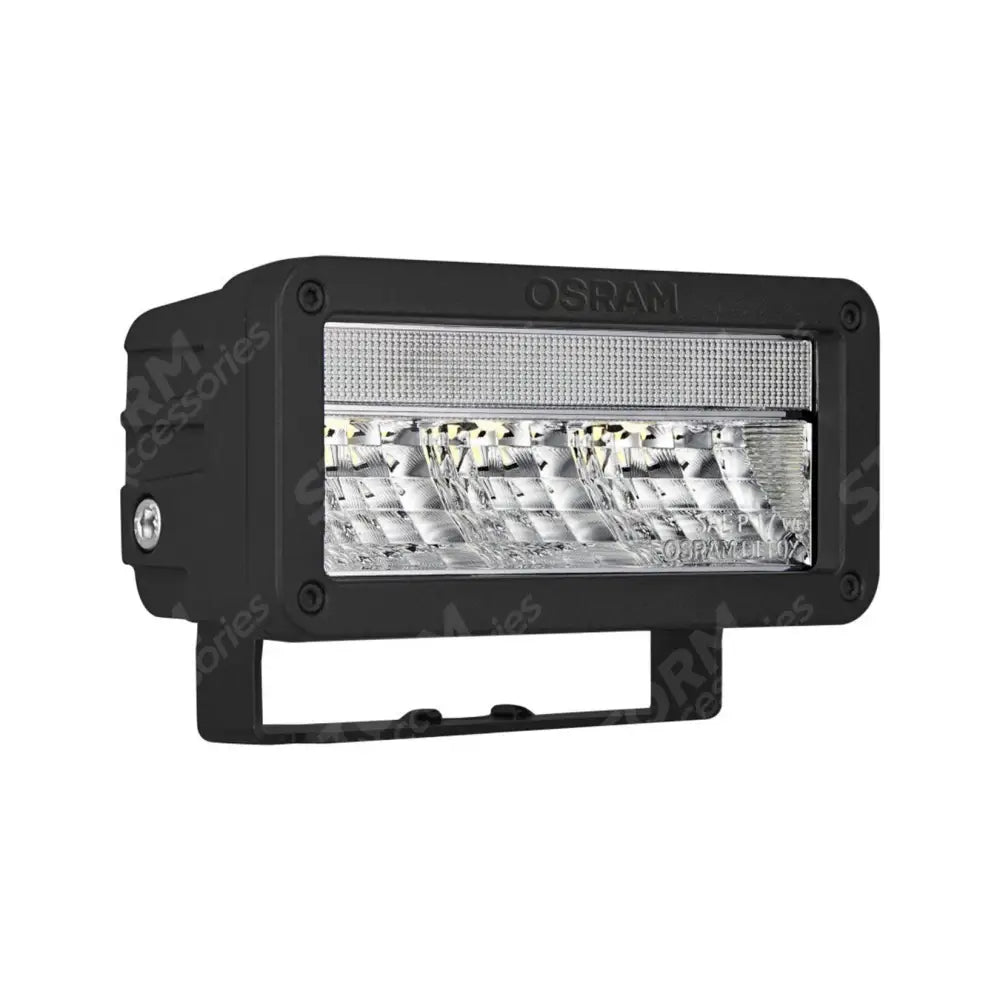

OSRAM LEDRIVING LIGHTBAR MX140-SP - DRIVING LIGHT BAR
*Please note – Wiring kit not included, can be added in the dropdown menu
The MX140-SP is a high-performance LED auxiliary light for improved road safety. Safety on the roads is of high importance, risks on the road come from poor lighting, poor road conditions and in more rural areas from wild animals.
This light bar is approved for use on the roads, with three high-performance LED's greatly improving visibility even in difficult conditions. With a wide 10 degree angle, the light beam can reach up to 200 meters.
You can use this auxiliary light in two ways, one as an auxiliary high beam and second as a frontal position light. Both these options are fully ECE-compliant. With a sophisticated reflector design, this light provides high optical efficiency with uniform light distribution. The design also keeps the light from blinding oncoming traffic.
Tough and durable, the light is equipped with a hard-wearing polycarbonate lens that meets the highest standards. It comes with an integrated driver and thermal management system which not only protects the LEDs from uncontrolled overheating but adds to the lifespan of the products. Over and under-voltage protection will automatically creak the circuit when power exceeds the already predetermined current for a set amount of time.
This LED light is not limited to use on automotive uses, it is also suitable for a full range of vehicles including 4x4s, pickups, utility and industrial vehicles, as well as recreational and agricultural vehicles.
- 2000 lumen LED auxiliary light
- Lighting distance of up to 200m
- Beam angle of 10 degrees
- Stylish
- Over/under voltage protection
- Thermal management system
- 5 YEAR GUARANTEE
Electrical data Nominal voltage 12/24 V Nominal wattage 30 W Test voltage 13.5 V
Photometrical data Luminous flux 2000 lm Color temperature 6000 K Light distance at 1lx [PIM] 200 m
Dimensions and weight Product weight 730.00 g Length 140.0 mm Width 73.0 mm Height 86.0 mm
Lifespan Lifespan Tc 5000 h Guarantee 5 years
Additional product data Connector to lamp DT Connector
Certificates and standards ECE category ECE R10, R112, R7 Approval marks – approval E4 approval Type of protection IP67
