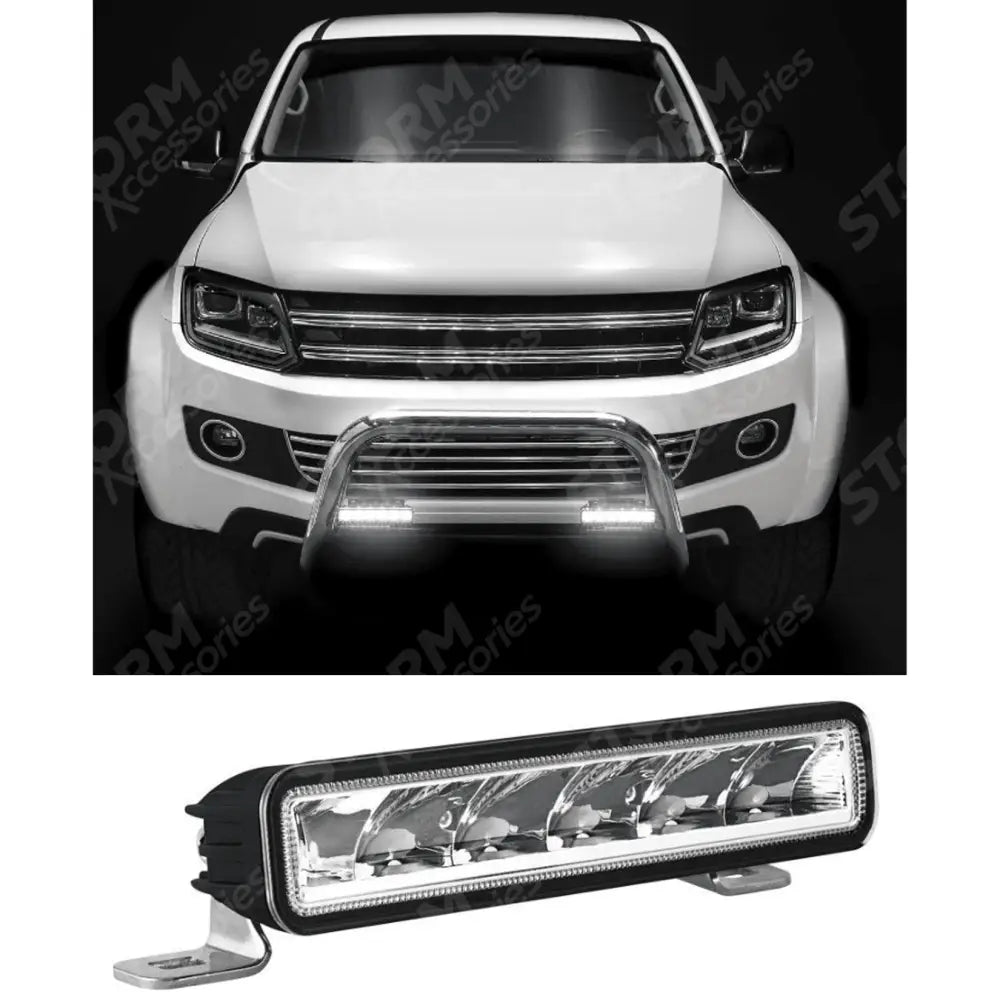

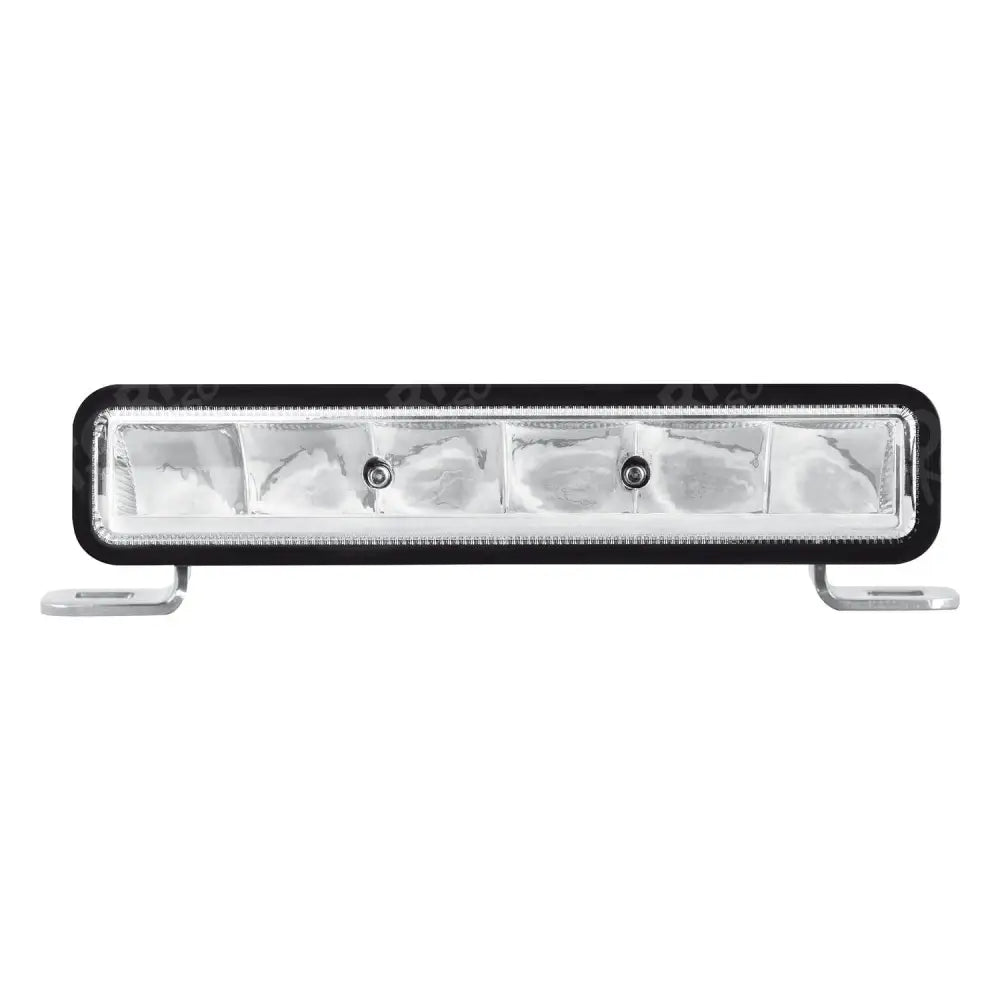

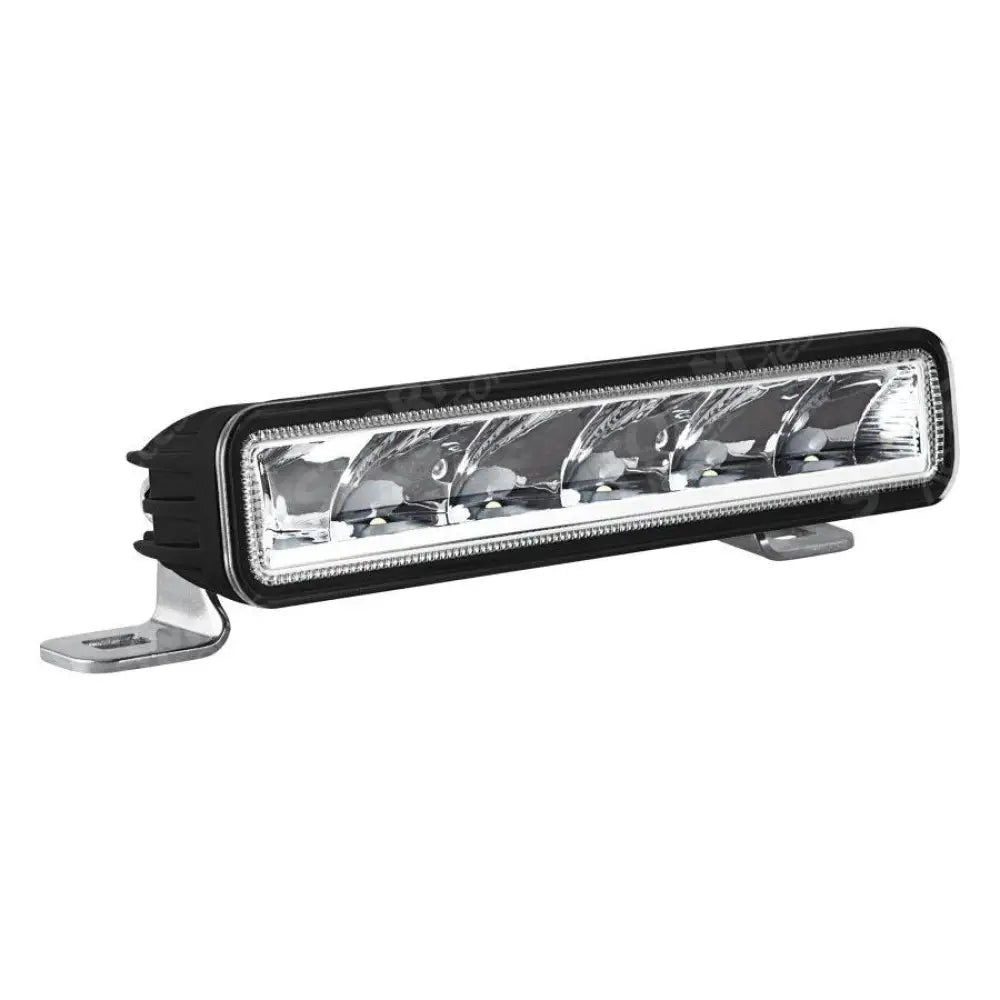

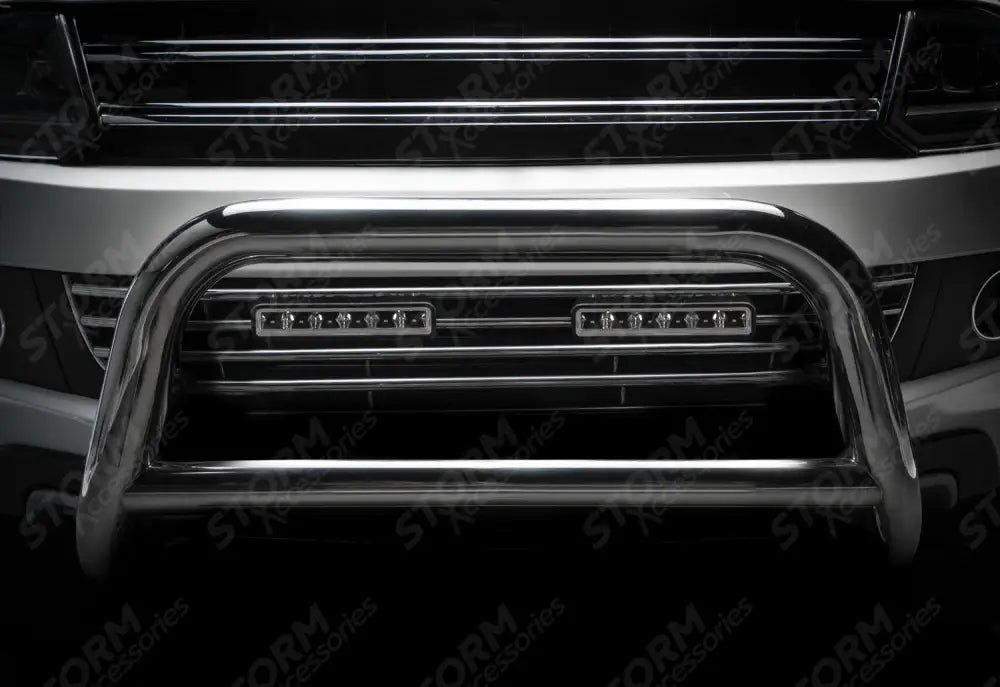

OSRAM LEDRIVING LIGHTBAR SX180-SP - SLIMLINE DRIVING LIGHT BAR

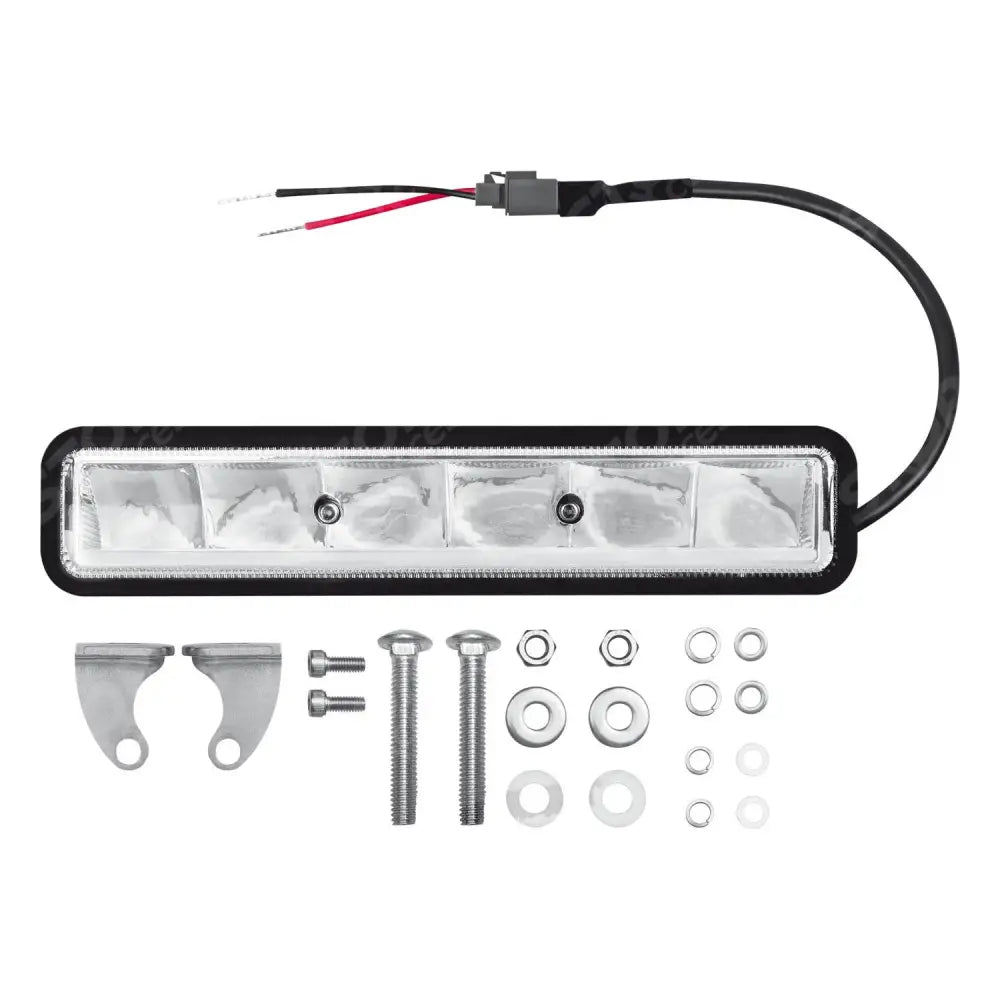

*Please note – Wiring kit not included, can be added in the dropdown menu
Improve your vision on dark and rural roads with this powerful light bar. With 6 intense, high-performance LEDs, road safety can really be improved with a light beam distance of up to 190 meters, it has an illuminance of one lux and a beam angle of 8 degrees. Light is evenly distributed through the intelligent reflector design distributes the light evenly and efficiently while reducing glare for oncoming traffic. This light is durable for daily use, in all conditions. The lens is manufactured to a high standard from robust polycarbonate and its durable housing will contribute to a longer life span. It comes with an integrated driver and thermal management system which not only protects the LEDs from uncontrolled overheating but adds to the lifespan of the products. Over and under-voltage protection will automatically creak the circuit when power exceeds the already predetermined current for a set amount of time. Even major fluctuations in temperature aren't a problem for this light bar, it can function in extremes between -30 and 60 degrees Celcius, a great feature especially during the winter and on off-road tours. ECE compliant, the light bar is ideal for on and off-road use, the slim and compact design allow the bar to be mounted in several ways and on a variety of vehicles.
- Powerful, efficient 1300 lumens
- Lighting distance of up to 190 meters
- Spot-beam - concentrated beam
- Stylish
- Slim design - a range of applications
- Over/under voltage protection

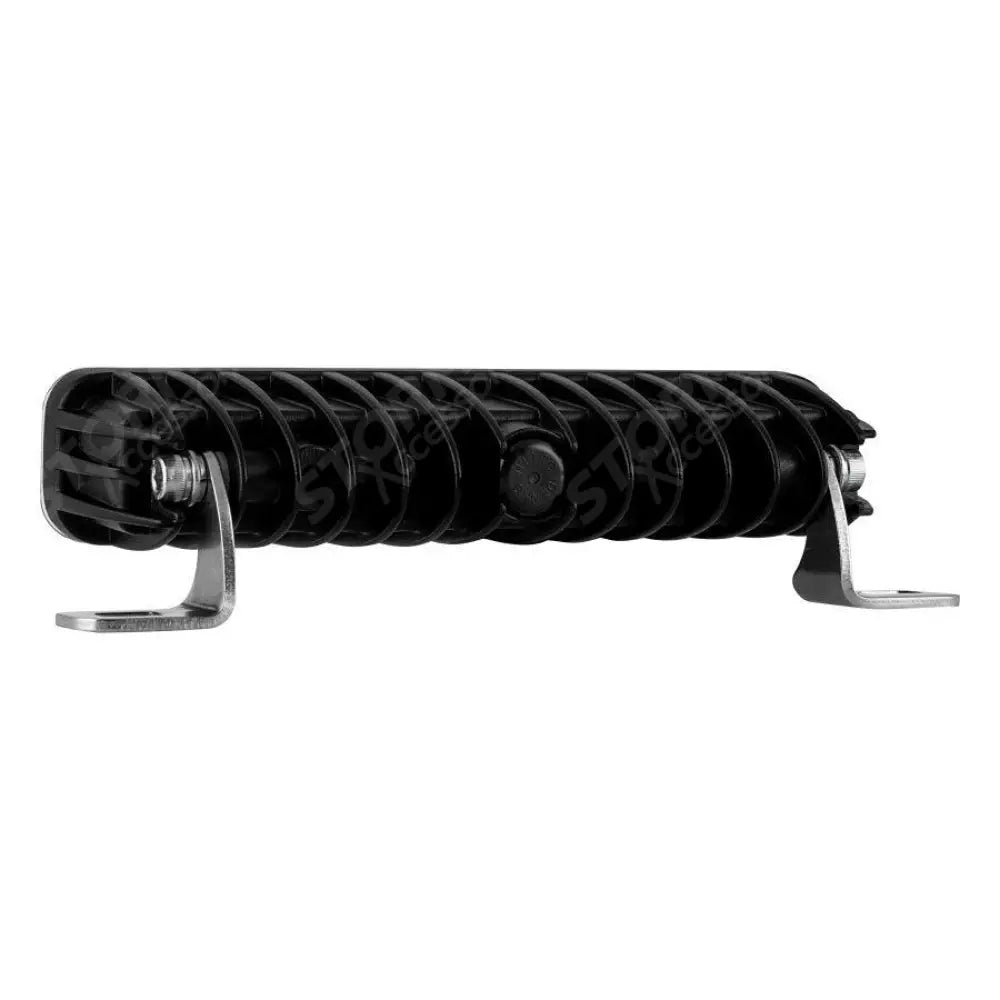

- Thermal management system
- FIVE YEAR GUARANTEE
Electrical data Nominal voltage 12/24 V Nominal wattage 15 W Test voltage 13.5 V
Photometrical data Luminous flux 1300 lm Color temperature 6000 K Light distance at 1lx [PIM] 190 m

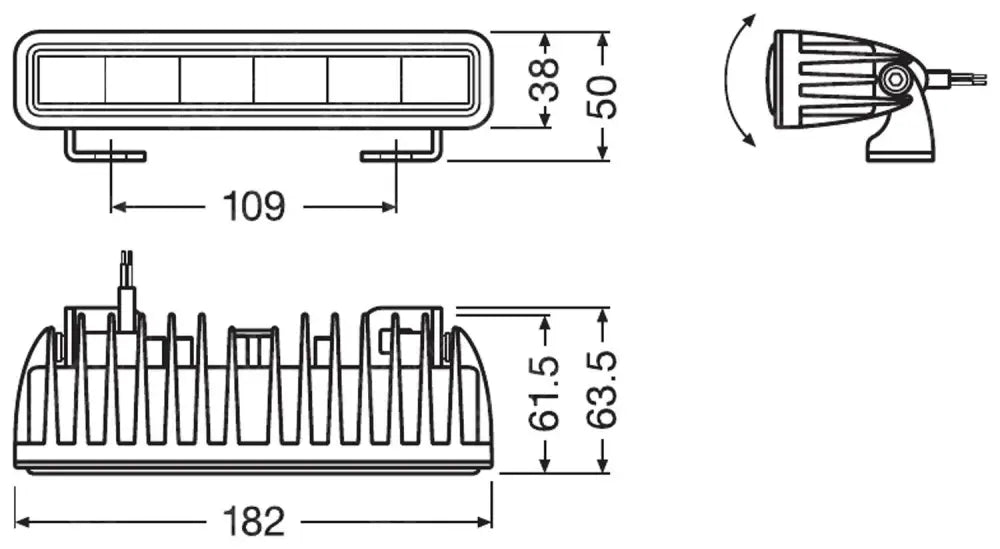

Dimensions and weight Product weight 440.00 g Length 182.0 mm Width 62.0 mm Height 38.0 mm
Lifespan Tc 5000 h
Guarantee 5 years
Additional product data Connector to lamp DT Connector
Certificates and standards ECE category ECE R10, R112 Approval marks – approval E4 approval Type of protection IP67
