Pedders 2 Inch Heavy Duty Load Carrying and Towing Kit With Assembled Foam Cell Struts For Ford Ranger 2023 On 2.0 Models
This suspension lift kit is designed for Ford Ranger 2.0 litre models from 2023 onwards, focusing on improved load carrying, towing capability and ground clearance. It is intended to help maintain vehicle stance when heavily laden while supporting larger tyre fitment where required.
Key Features
- 2 inch lift (approx. 40mm)
- Improved load carrying and towing performance
- Increased off-road ground clearance
- Sintered iron piston Foam Cell shocks with large 40mm bore
- Heavy duty steel suspension components
- Includes Ezifit Struts, Foam Cell shocks, rear leaf springs, bushes and U bolts
- Ezifit Struts pre-assembled for easy installation
- Backed by a 2 Year / 40,000km / 25,000 mile warranty
Product Overview
This kit is a first-level heavy duty option designed to raise the vehicle by approximately 40mm and improve load carrying and towing performance compared to standard rear springs. It supports improved ground clearance and helps reduce rear sag when towing or carrying loads.
It requires a constant minimum 300kg load to retain good ride comfort, including accessories such as canopies and tow bars. If additional front equipment such as bull bars or winches is fitted, final ride height may vary and alternative springs may be required. For more heavily laden applications, an Extra Heavy Duty kit option is available.
Foam Cell Shock Technology
Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.
Installation & Compatibility
Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.
This kit is designed for load carrying and towing applications rather than comfort-focused use.
Technical Specification
- Lift amount: 2 inches (approx. 40mm)

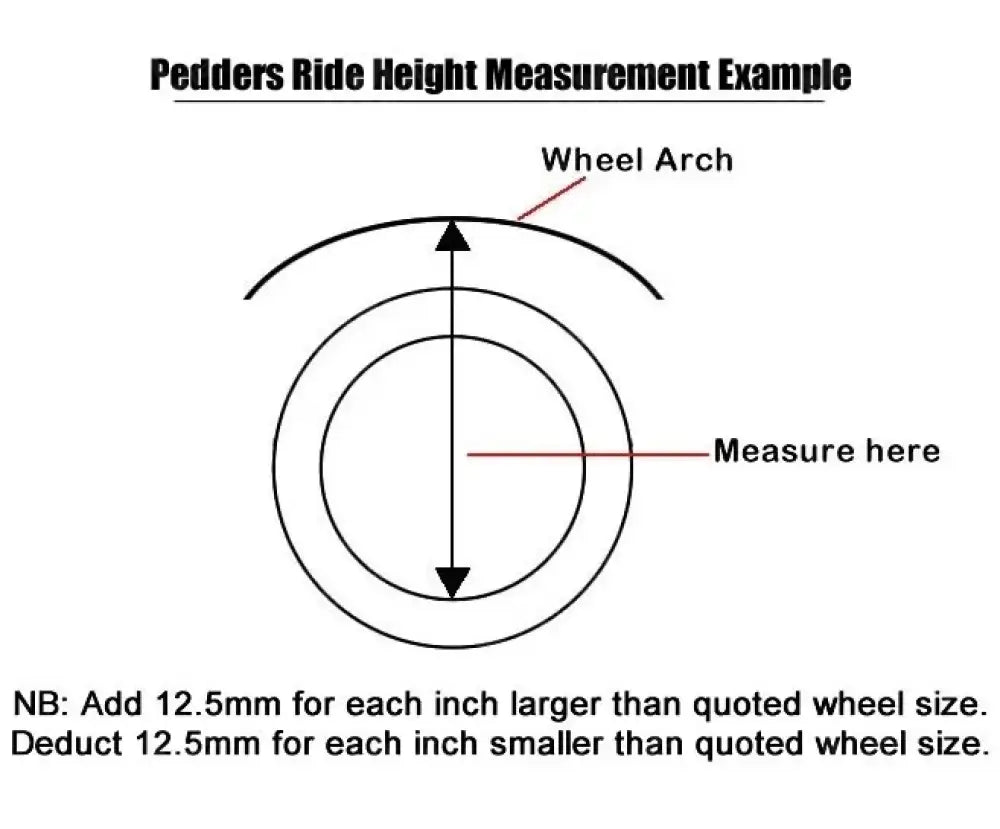

- Front height: 605mm hub centre to wheel arch
- Rear height: Approximately 50mm higher than standard
- Shock bore size: 40mm
- Recommended constant load: Minimum 300kg

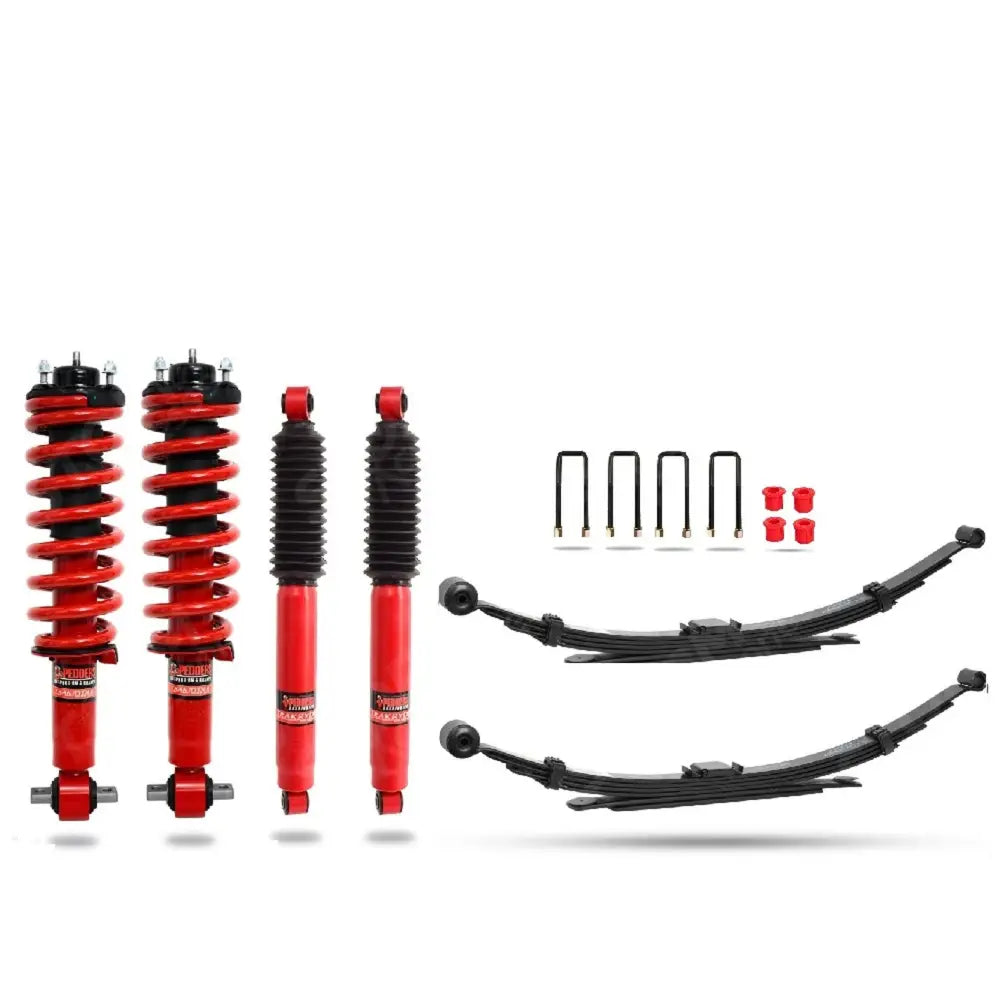

- Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, rear leaf springs, bushes and U bolts
- Fitment: Ford Ranger 2023 on 2.0 models
