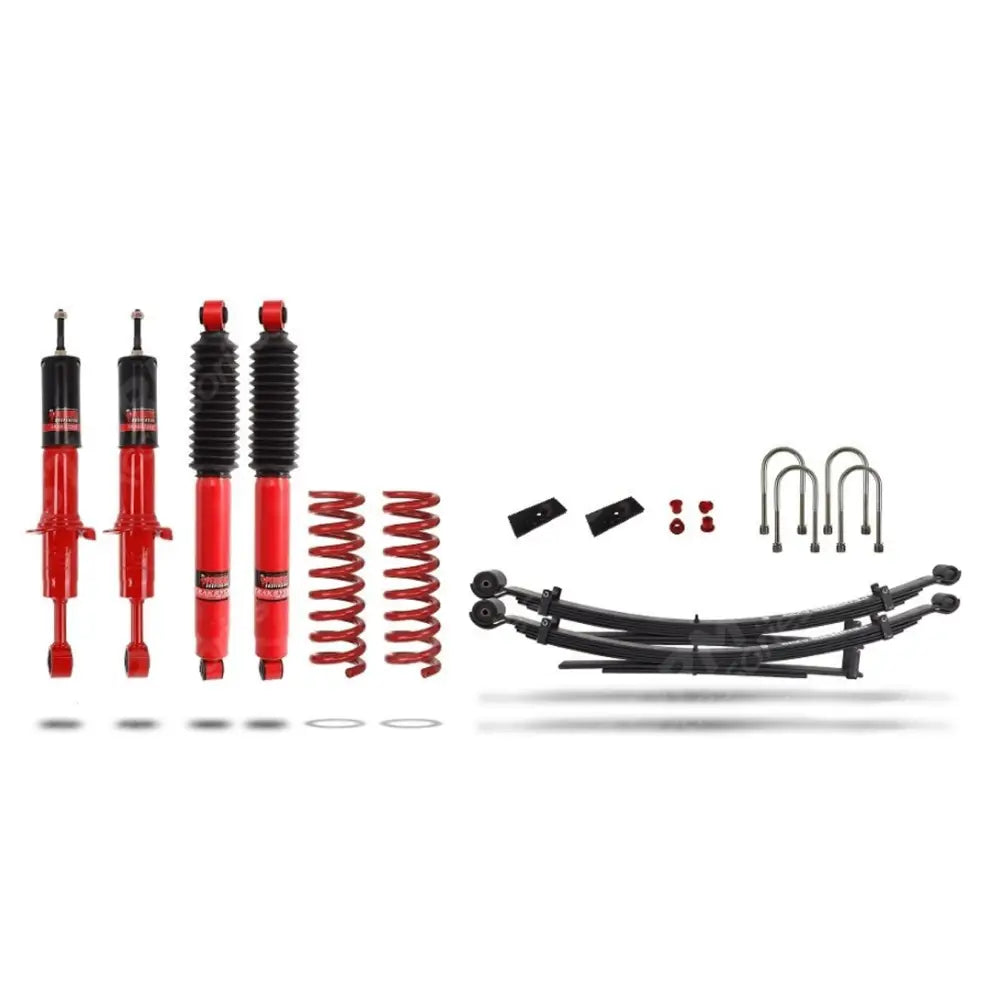

2 Inch Extra Heavy Duty Load Carrying and Towing Kit. Ford Ranger 2023 on. 3.0 V6 models

2 Inch Extra Heavy Duty Load Carrying and Towing Kit. Ford Ranger 2023 on. 3.0 V6 models

This kit is our top level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Ranger currently sits low at the rear when towing or load carrying, then this kit offer a significant improvement compared to the standard vehicle.

This kit improves the load carrying ability compared to the standard Ford Ranger rear spring. It does, however, require a constant load of 600kg to retain good ride comfort. Dont forget to include your canopy and tow bar, for example, as part of the 600kg constant load.

This kit will raise the vehicle by approx. 50mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.


These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.


Key features

• 2 Inch Lift Kit
• Improved load carrying and towing
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 40mm Bore
• Premium Grade Steel Coils
• All backed by our 2 year / 40,000km warranty

Vehicle Height Information
Front: 615mm hub centre to wheelarch
Rear: Approx. 50mm higher than standard.
