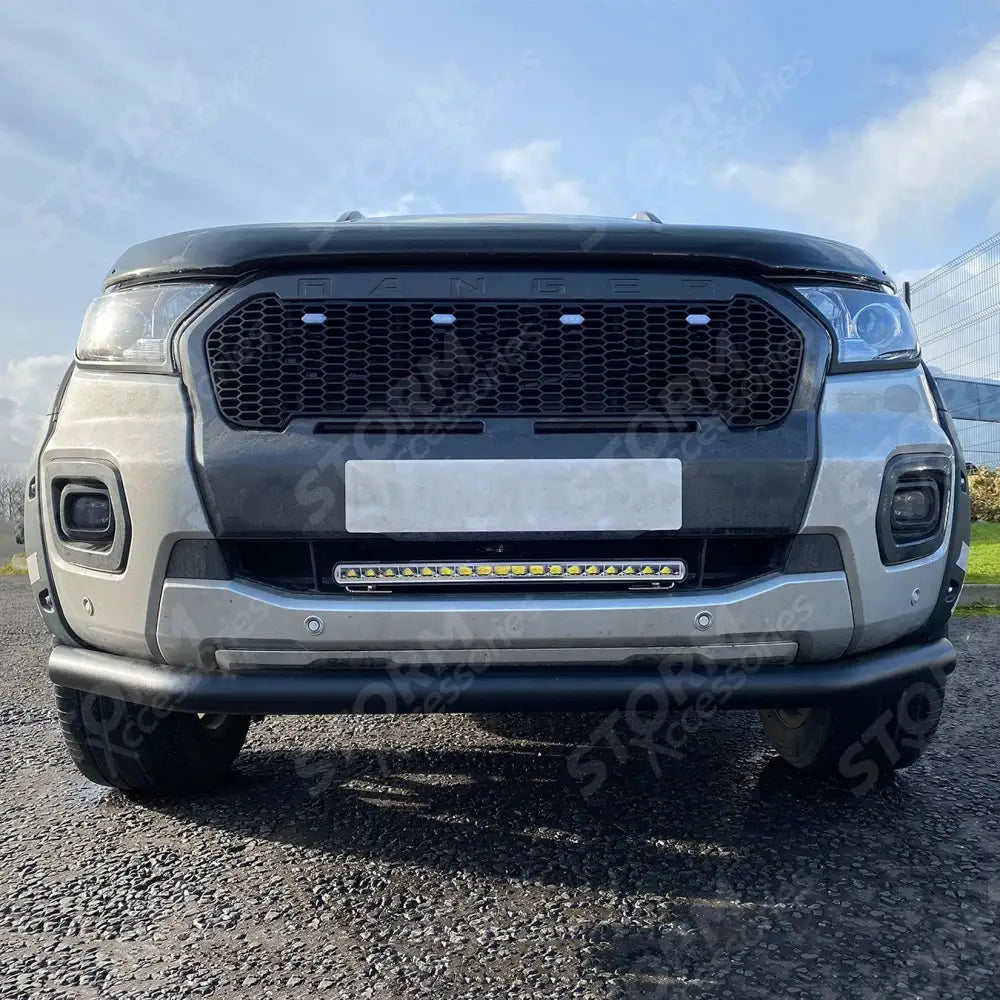

Osram Ledriving Lightbar Sx500-sp - Slimline Driving Light Bar - 450m Vision - 665mm

OSRAM LEDRIVING LIGHTBAR SX500-SP - SLIMLINE DRIVING LIGHT BAR

*Please note – Wiring kit not included, can be added in the dropdown menu

Intelligent LED lighting is combined with a long 5000-hour lifespan in the SX500-SP searchlight.  With 18 intense, high-performance LEDs, road safety can really be improved with a light beam distance of up to 360 meters, it has an illuminance of one lux and a beam angle of 8 degrees.

The 3900 lumens LED light is evenly distributed through the intelligent reflector design, it distributes the light evenly and efficiently while reducing glare for oncoming traffic. This light is durable for daily use, in all conditions.  The lens is manufactured to a high standard from robust polycarbonate and its durable housing will contribute to a longer life span.

It comes with an integrated driver and thermal management system which not only protects the LEDs from uncontrolled overheating but adds to the lifespan of the products.  Over and under-voltage protection will automatically creak the circuit when power exceeds the already predetermined current for a set amount of time.

Even major fluctuations in temperature aren't a problem for this light bar, it can function in extremes between -30 and 60 degrees Celcius, a great feature especially during the winter and on off-road tours.  ECE compliant, the light bar is ideal for on and off-road use, the slim and compact design allow the bar to be mounted in several ways and on a variety of vehicles.

• Powerful, efficient 3900 lumens
• Lighting distance of up to 360 meters
• Spot-beam - concentrated beam
• Stylish
• Slim design - a range of applications
• Over/under voltage protection
• Thermal management system

Electrical data Nominal voltage 12/24 V Nominal wattage 45 W Test voltage 13.5 V

Photometrical data Luminous flux 3900 lm Color temperature 6000 K Light distance at 1lx [PIM] 370 m

Dimensions and weight Product weight 1100.00 g Length 556.0 mm Width 62.0 mm Height 38.0 mm

Lifespan Lifespan Tc 5000 h Guarantee 5 years

Additional product data Connector to lamp DT Connector

Certificates and standards ECE category ECE R10, R112 Approval marks – approval E4 approval Type of protection IP67
