Pedders Lowering Kit With Assembled Foam Cell struts For Ford Ranger 2023 On 2.0 Models
This lowering suspension kit is designed for Ford Ranger 2023-on 2.0 models, delivering an approximate 40mm reduction in ride height. It improves handling response and vehicle stability while providing a sportier on-road stance.
Key Features
- Lowering kit with approx. 40mm reduction in ride height
- Improved on-road handling and steering response
- Sportier vehicle stance with reduced body roll
- Sintered iron piston Foam Cell shocks with large 40mm bore
- Premium grade steel lowered coil and leaf springs
- Ezifit Struts pre-assembled for easy installation
- Backed by a 2 year / 40,000km warranty
Product Overview
This Premium Lowering Kit combines Pedders TrakRyder Foam Cell shocks with lowered coil and leaf springs to enhance cornering control and reduce body movement during on-road driving. The lowered ride height delivers a more planted feel and refined handling without significantly compromising ride comfort.
The kit is intended primarily for vehicles used on sealed roads where improved stability and appearance are desired. Accessories such as bull bars or roof racks may influence the final installed height.
Foam Cell Shock Technology
Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.
Installation & Compatibility
Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.
This kit is suited to on-road focused use rather than constant load carrying or towing applications.
Technical Specification
- Lowering amount: approximately 40mm
- Shock type: TrakRyder Foam Cell, sintered iron piston
- Shock bore size: 40mm

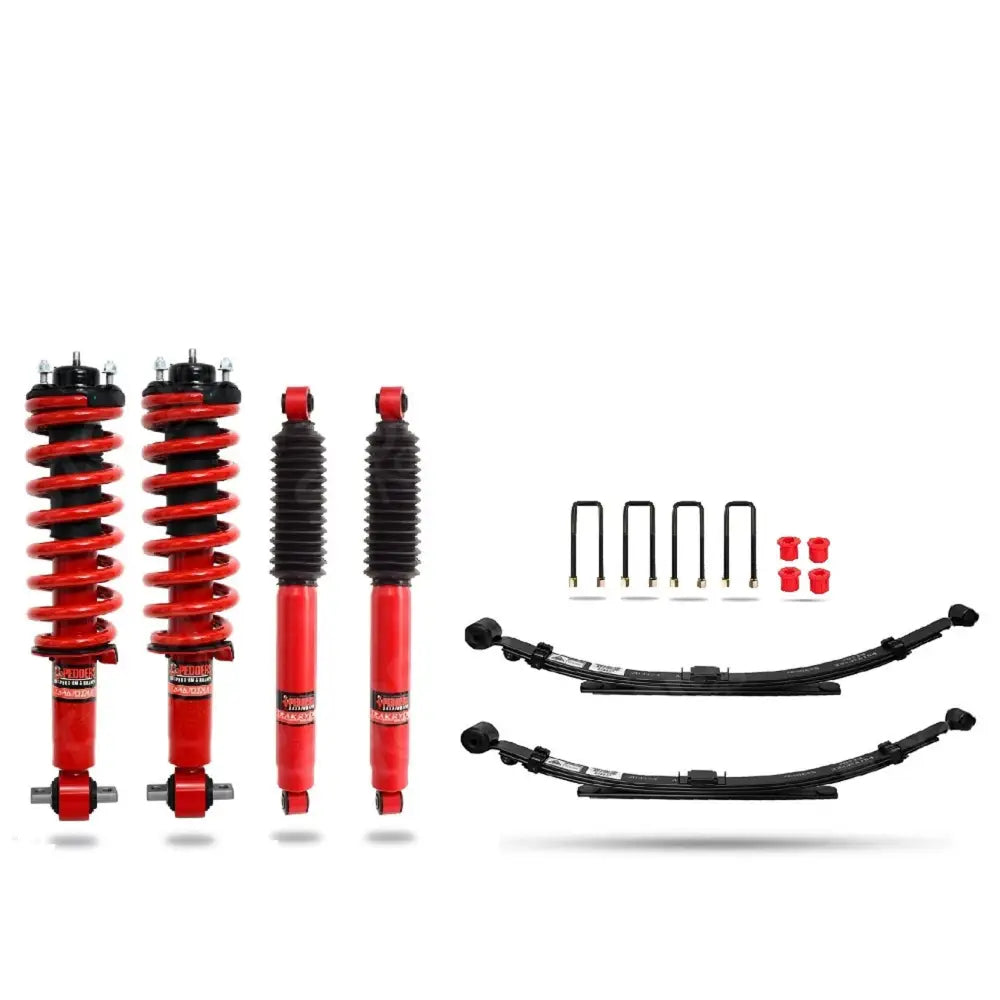

- Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, lowered coil and leaf springs, bushes and U bolts
- Fitment: Ford Ranger 2023-on 2.0 models
