Pedders Lowering Kit With Assembled Foam Cell struts For Ford Ranger 2023 On 3.0 V6 Models
This lowering suspension kit is designed for Ford Ranger 3.0 V6 models from 2023 onwards. It lowers the vehicle by approximately 40mm to improve handling, reduce body roll and deliver a sportier on-road stance while maintaining ride stability.
Key Features
- Approx. 40mm lowering for improved handling and stance
- Enhanced ride stability and cornering control
- Sintered iron piston shocks with large 40mm bore
- Premium grade lowered steel coil springs
- Includes lowered leaf springs for matched rear stance
- Ezifit Struts pre-assembled for easy installation
- Backed by a 2 year / 40,000km warranty
Product Overview
This Premium Lowering Kit replaces the factory suspension components with matched lowered springs and shocks to provide a more responsive on-road driving experience. It is intended for drivers who prioritise handling, reduced body roll and a lower centre of gravity.
The quoted lowering amount is based on a standard vehicle. Additional accessories such as bull bars or roof racks may affect final ride height. This kit is not designed for constant heavy loads or towing-focused applications.
Foam Cell Shock Technology
Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.
Installation & Compatibility
Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.
This kit is best suited to on-road use where handling and stance are prioritised over load carrying.
Technical Specification
- Lowering amount: Approximately 40mm compared to standard
- Shock bore size: 40mm

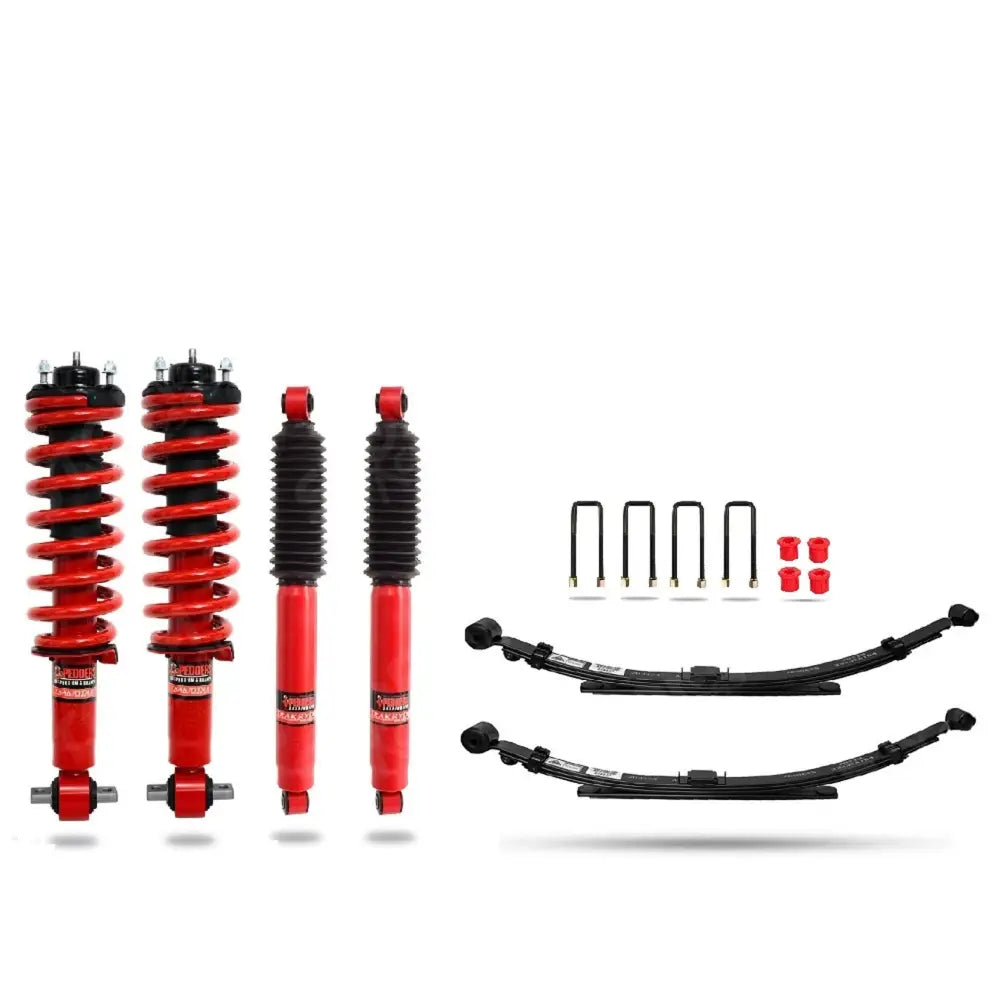

- Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, lowered coil springs, lowered leaf springs
- Fitment: Ford Ranger 2023 on, 3.0 V6 models
